Vehicular Site Gates

Description

We will prepare a bespoke cost for matching Vehicular Gates after discussing your specific needs in detail. Our gates have been installed on premier UK construction sites

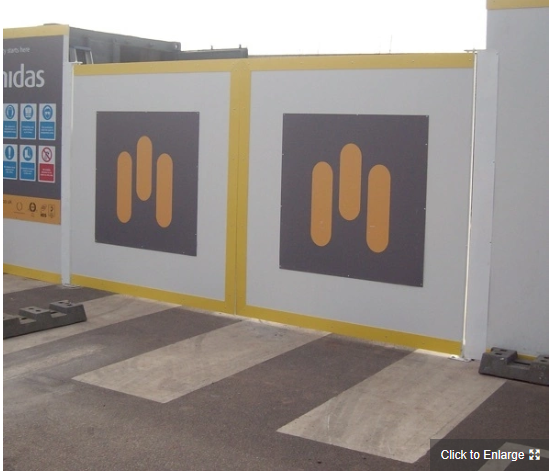

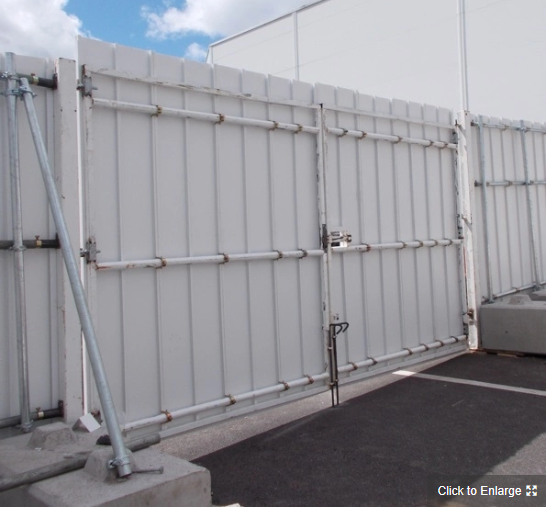

PVC gates will match and blend in with the selected hoarding type and colour. They are backed by study steel supports and clips and include heavy duty hinges that perform in all weather conditions. The gates are fully compatible with high resolution graphics.
Standard single gate sizes are 2m x 2m to form a 4m wide access point when fully opened.
Height: 2m to 3m (up to 3000mm)
Width: Each gate 2m to 3m (opening 4m to 6m)
4mm powder coated steel frame – width 40mm x 40mm – fixed to gate leaf using minimum 6mm welds
Spring-loaded wheels are fixed to support the opening edge of each gate leaf
PVC panels with PVC/steel edging as required
Powder coated steel vertical gate post (hollow post made from 4mm steel)
Supplied with hook and back plate hinge which is bolted to the gate post
Supplied with steel horizontal hasp and lock and two vertical monkey tail bolts which drop into drilled holes in the ground
Gate specifications will be confirmed and priced over the phone
